T Slot Sizes

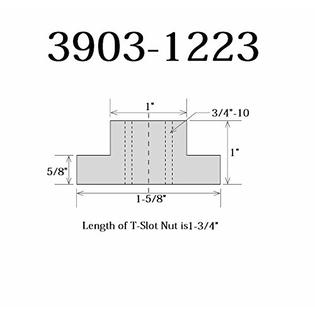

In many finishes and sizes, t-bolts are available in special lengths and sizes to fit machine table slots. EDP No: 10284 Bolt Size T-Slot Milling Cutter; 1-1/2' Bolt. WTC No: 815000 High Speed Steel No Coating Qty View all Product Details: Style: Bolt Size Cut Diameter. A T-Slot Nut is a nut that is shaped like a 'T' designed to slide into the channel of a machine tool table for work holding during machining. A stud is usually screwed into the top of the nut.-T-Slot Nuts are all machined from cold finished steel bar stock.-Case hardened.-Other sizes on request.-For use with ZIP Studs.
T-slot structural framing is a framing system consisting of lengths of square or rectangular extruded aluminum, typically 6105-T5 aluminium alloy, with a T-slot down the centerline of one or more sides. It is also known as 80/20 framing, after the company 80/20, Inc., one of the prominent T-slot framing brands, the name of which is based on the 80/20 principle. While there is no published standard defining this framing system, manufacturers have settled into two categories of product comprising several series each that is generally intercompatible across manufacturers.
Profiles[edit]
T-slot framing is divided into metric and fractional (imperial) categories. The T-slot is always centered along the long-axis of the piece. Pieces are available in each series with a square cross-section. Rectangular cross sections are available as well which measure x by 2x (where x is the defined width) - e.g. 40mx80mm for 40 series.
| Profile type | Profile name | Profile size |
|---|---|---|
| fractional | 10 series | 1' |
| 15 series | 1.5' | |
| metric | 20 series | 20 mm |
| 25 series | 25 mm | |
| 30 series | 30 mm | |
| 40 series | 40 mm | |
| 45 Series | 45 mm |
CAD model of a rotating T-nut used with aluminium T-slots/ T-track/ extrusions
T-nut (red) installed in a T-Slot
See also[edit]
How To Measure T Slot Sizes
